pv glass solar panel

►► Tempered Glass Solar Panel

High solar energy transmittance, strength and durability.

High efficiency monocrystalline solar cells.

Glass thickness:3.2mm,Low iron tempered glass.

Operation life: 15 years.

Warranty: power keep more than 90% in 10 years

Unique, round design, to meet your aesthetic vision

►► Check out our Visual Directory! || Round Solar Panel ►►

Model No.:
Diameter
Pmax
Operating Voltage
Operating Current
Encapsulation Methods
103mm
0.6W
5.5V
110mA
130mm
1.2W
6V
200mA
160mm
2W
6V
333mA
240mm
4W
6V
666mA
280mm
5W
9V
555mA
390mm
10W
18V
555mA
425mm
15W
18V
833mA
470mm
20W
18V
1.11A

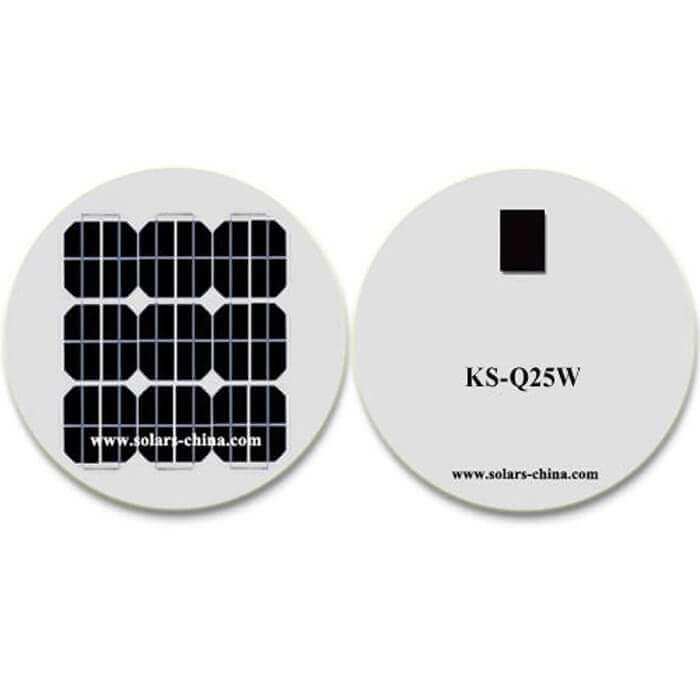

520mm
25W
18V
1.38A

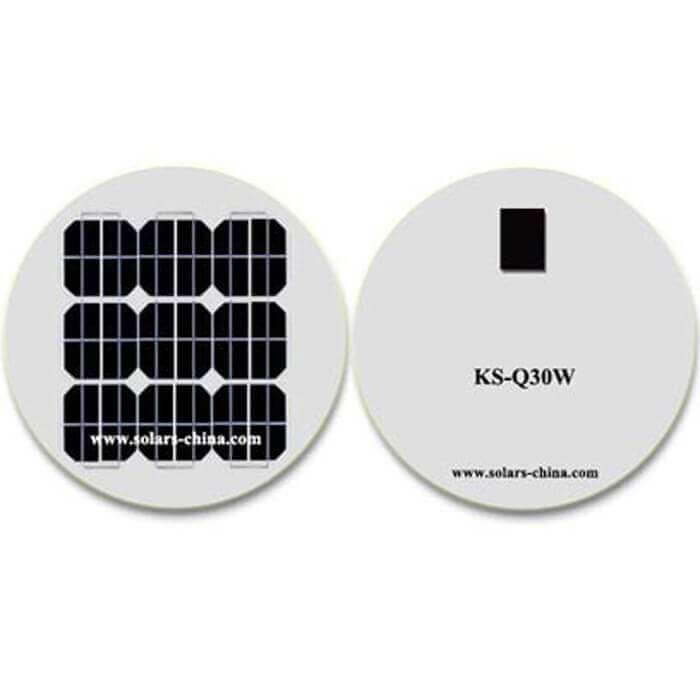

570mm
30W
18V
1.67A
600mm
35W
18V
1.94A

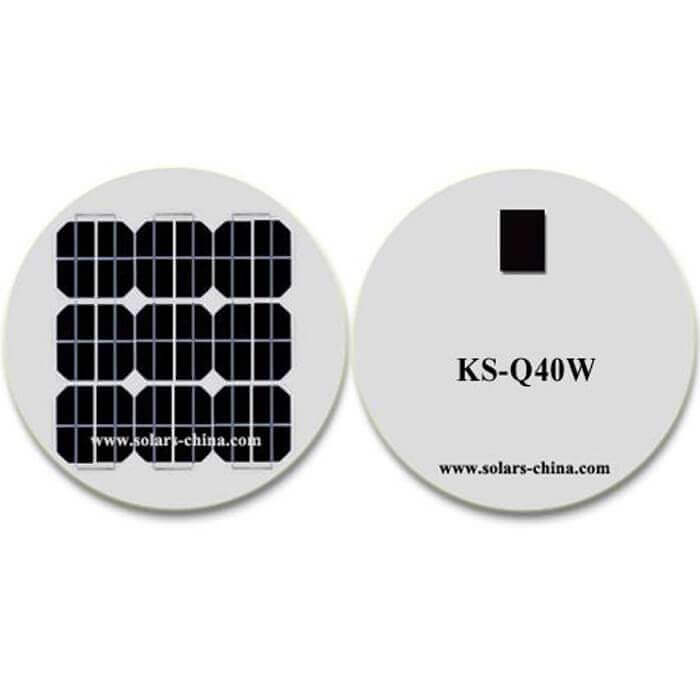

660mm
40W
18V
2.22A

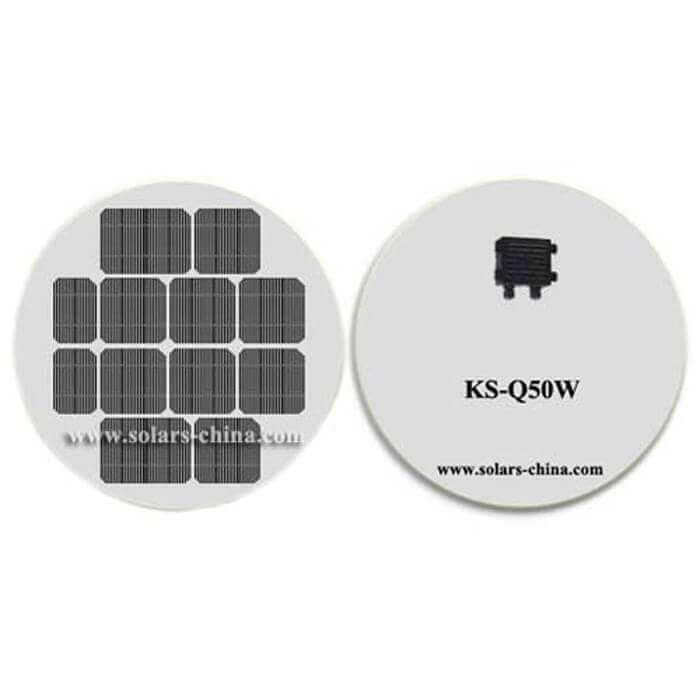

725mm
50W
18V
2.78A

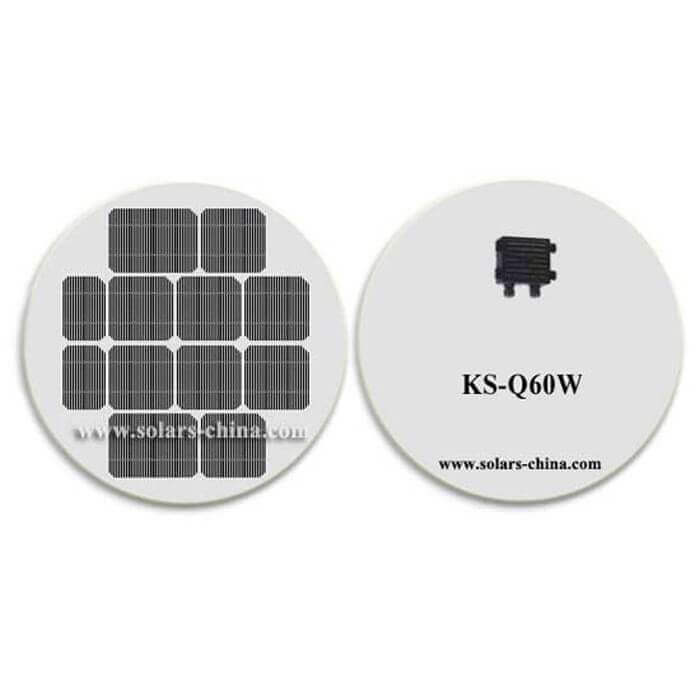

790mm
60W
18V
3.33A
920mm
80W
18V
4.44A
● Thickness of solar panel: 5mm
● Type:Monocrystalline silicon solar cell
● Encapsulation Methods: Tempered glass
● Glass thickness:3.2mm,Low iron tempered glass
● Standard test conditions(STC): AM1.5, Irradiance:1000W/square meters, Module temperature:25 degrees centigrade.
● Warranty: nominal power keep more than 90% in 10 years.

We also manufactures customized solar cells according to customer's specifications. Welcome to OEM services, please tell your demand, and we will feedback in 24 hours.

Customized Solar cell panel, please contact us: oem@solars-china.com

If you want to inquiry or place an order, Please send the inquiry or purchase order to us by email, including model number, quantity and delivery address. Email: market@solars-china.com
